NTC 5 Kohm Glass Encapsulated Thermistor temperature sensor

Name: NTC 5 Kohm Glass Encapsulated Thermistor temperature sensor
Brand: Hefei Minsing
Price: 1 USD

Brand Name : Hefei Minsing

Model Number : MF5A-5

Certification : REACH ,ROHS

Place of Origin : China

MOQ : 500pcs

Price : Negotiable

Payment Terms : T/T

Supply Ability : 50 Million Pieces Per Year

Delivery Time : 7-10 work days

Packaging Details : Bulk

Product Type : Glass Encapsulated Thermistor

Lead Wire : PVC , , Kynar...

Head Size : Φ1.5-Φ4.5mm

Wire Length : 15-2000mm

R25℃ : 0.5KΩ-2000KΩ

B Value : 3000K-4500K

R Tolerance : 0.5%,1%,2%,3%,5%

B Tolerance : 0.5%,1%, 2%,3%,5%

Contact Now

NTC 5 Kohm Glass Encapsulated Thermistor Temperature Sensor

Applications

Air conditioner, refrigerator, freezer, hot water supply system, microwave oven, washing machine, clothes dryer, toilet, dishwasher

Specification Explain:

SJ MF 5A-5 -3470 -502 F

① ② ③ ④ ⑤ ⑥

① Minsing Co.,Ltd

② NTC thermistor

③ Epoxy coating type 5A-5 series

④ B value(B 25/50℃) Example: 3470:B 25/50℃: 3470

⑤ Standard resistance value at 25℃(R25℃):

Example:502:R25℃ 5KΩ,103:R25℃ 10KΩ ,104:R25℃ 100KΩ

⑥ R25℃ interchangeability precision:

F(±1%); G(±2%); H(±3%); J(±5%); K(±10%)

Product Feature:

Fast response, small dimension / Can operate in long time stability / High measurement accuracy

Application:

Auto. seat heating system / Auto. steering wheel heating system

Auto. coolant water system / Auto. diesel fuel system / Auto. evaporator system

Auto. transmission system / Auto. intake and outlet air system / Auto.Air-condintioner

NTC 5 Kohm Glass Encapsulated Thermistor temperature sensor

Specification:

Specification	R25℃ (KΩ)	B25/50℃ (K)	Disspation constant	Thermal time constant	Operating temp. range
SJMF5A-□-347/395/385-202□	2	3470/3950/3850	ln still air ≥ 2.1mW/℃	ln still air ≤ 15s	-40～+150℃
SJMF5A-□-327/347/395-502□	5	3270/3470/3950
SJMF5A-□-338/347/390-103□	10	3380/3470/3900
SJMF5A-□-395/420/405-473□	47	3950/4200/4050
SJMF5A-□-395/420/405-503□	50	3950/4200/4050
SJMF5A-□-395/348-152□	1.5	3950/3480
SJMF5A-□-397/418-104□	100	3970/4180
SJMF5A-□-453-105□	1000	4530

□ R25℃ interchangeability precision , B value precision ±1% ±2% ±3% ±5%

B value among 3000-4500K,and R25℃ among 0.5KΩ-2000KΩ MF5A can be custom designed.

Product Tags:

5 Kohm Glass Encapsulated Thermistor

NTC Glass Encapsulated Thermistor

NTC 5 Kohm glass thermistor

China NTC 5 Kohm Glass Encapsulated Thermistor temperature sensor factory

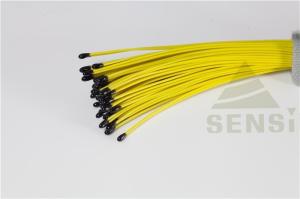

NTC 5 Kohm Glass Encapsulated Thermistor temperature sensor Images
